MV Agusta Reparto Corse



In 2016 SC-Project is the official technical supplier of exhaust systems for the Italian MV Agusta in the World Superbike Championship with its national team "Racing Department", which will field in the superlative SBK MV Agusta F4 RC with the British rider Leon Camier and in the Supersport performance F3 RC 675 drived by the talented Frenchman Jules Cluzel, already fighting for the world title in 2015 riding the F3 Supersport, and the young Italian Lorenzo Zanetti, for the second consecutive year with MV Agusta.

In a competitive category as Superbike the supply of exhaust systems which ensure the maximum performance in the championship from the derived series is fundamental. SC-Project has always been at the vanguard in the R&D of exhaust systems for racing motorbikes and thanks to the constant development, result of continuous interaction between SC-Project technicians and the best engineers and technicians of various Superbike Team and MotoGP has developped an ultra-high-performance exhausts intended for performance engines, the 4-cylinder 1000 cc of F4 RC and 3-cylinder 675 cc of F3 RC.

The innovation, determination and technology of SC-Project Italian Factory, the epitome of style, performance and excellence, are confirmed by the presence of SC-Project exhaust systems on the bike of Team Factory Racing Department of the prestigious Italian company, synonymous of prestige and excellence in the motorcycle field, which commissioned SC-Project the important and vital role of Official Technical Supplier of MV Agusta Racing Department to follow the development, engineering and construction of exhaust systems of the factory team.

The SC-Project exhaust systems are the result of numerous studies, tests and developments derived directly from the race track where SC-Project has been present for several years. The many achievements in the race, podiums and victories in several races in the various World Championships confirm the enormous potential of the systems built at SC-Project Factory located in Lombardia, which is a few kilometers from the historical site and production of MV Agusta, confirming an absolutely outstanding technical partnership between two of the best Italian and Lombardian companies present in motorcycling, the SC-Project Milan and Varese MV Agusta.

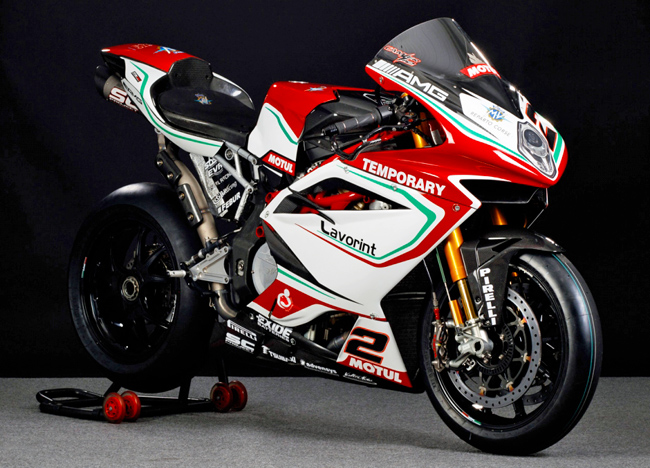

MV AGUSTA F4 RC SUPERBIKE 2016



Engine:
In-line 4-cylinder, 4-stroke, 16 titanium valves
Capacity:
998 cc
Bore x stroke:
79 mm x 50.9 mm
Timing System:
D.O.H.C. with radial valves
Cooling System:
FEBUR separated liquid and oil radiators Taleo Tecnoracing
Engine Management System:
Electronic fuel injection with Magneti Marelli MLE ECU
Injectors:
Twin injectors for each cylinder
Intake System:
Variable length TSS with MWR filter
Clutch:
Suter slipper clutch with hydraulic actuator
Lubrication:
Gear-driven oil pump
Exhaust System:
SC-Project S1 Superbike EVO16 4-2-1 titanium
Power:
> 220 hp at 13800 rpm at the crankshaft
Chassis:
Tubular steel trellis and aluminium castings
Suspension:
42mm Ohlins RSP25 front forks, single sided swingarm with Ohlins RSP36 shock
Wheels:
Marchesini forged aluminium 3.50x17” front and 6.00x17” rear
Brakes:
Twin front Brembo radial P4 30/34 calipers with twin ø336 floating disks
Single Brembo P2.30 with single ø230 disk
Wheelbase:
1430 mm
Length:
2115 mm



MV AGUSTA F3 675 SUPERSPORT



Engine:
In-line three-cylinder, 4 stroke, 12 titanium valves
Capacity:
675 cc
Bore x Stroke:
79 mm x 45.9 mm
Timing System
D.O.H.C.
Cooling System:
FEBUR separated liquid and oil radiators
Engine Management System
Electronic fuel injection with Magneti Marelli MARVEL 4 ECU
Injectors:
Twin injectors for each cylinder
Intake System:
MWR filter
Clutch:
Suter slipper clutch with cable actuation
Lubrication:
Gear-driven oil pump
Exhaust System:
SC-Project Evo16  3-1 titanium
Power:
> 145 hp at 14800 rpm at the crankshaft
Chassis:
Tubular steel trellis and aluminium castings
Suspension:
42 mm front forks with Ohlins FGRR509 cartridge, single sided swingarm with Ohlins TTX36 shock
Wheels:
Aluminium 3.50x17” front and 5.5x17”rear
Brakes:
Twin front Brembo radial calipers with twin ø320 floating disks
Single Brembo caliper with ø220 disk
Wheelbase:
1380 mm
Length:
2060 mm
Width:
725 mm
Fuel Tank Capacity
16,5 litri
Dry Weight:
162 kg with water and oil
